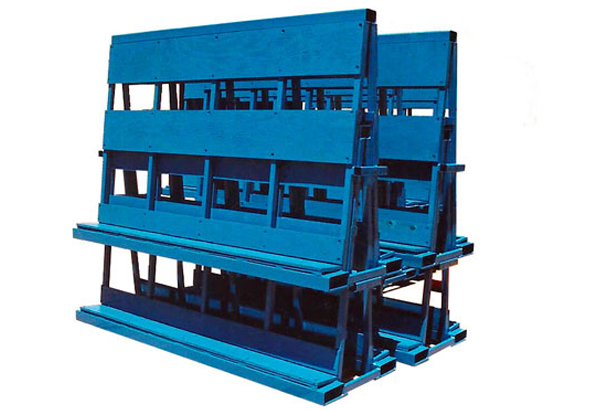

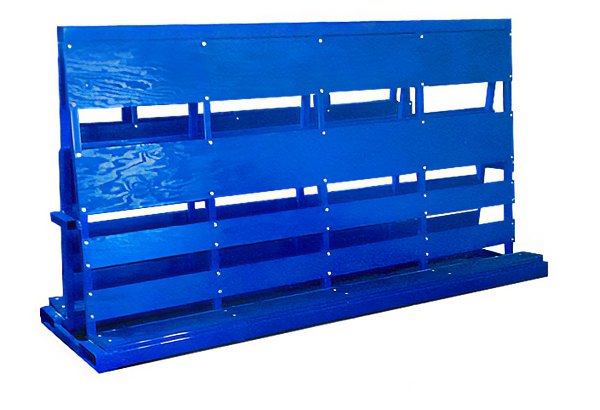

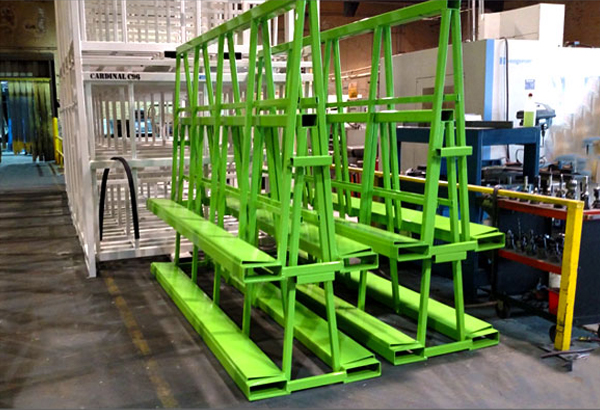

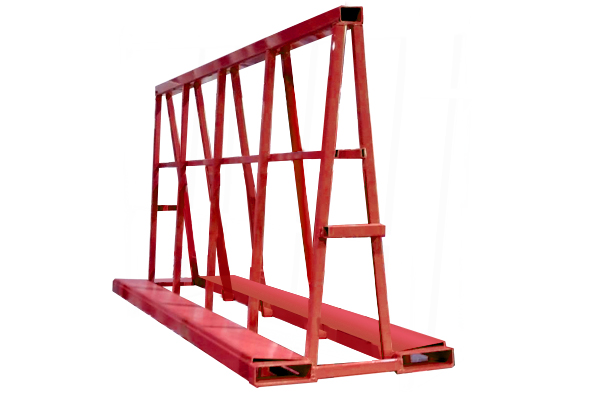

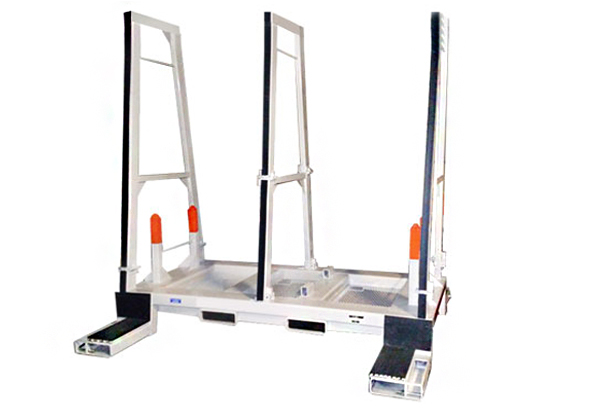

An A-Frame glass rack is a steel rack with two upright beams welded to a top crossbar, forming a triangular "A" that loads flat glass on both sides. The double-sided design provides usable space on each side, so a single A-Frame stores or transports roughly twice the glass of an L-Buck in the same floor footprint — and the open structure lets operators see and select sheets from either side. NSMC has supplied custom A-Frame racks to many of the largest glass manufacturers for over 18 years, built from heavy-gauge steel with full seam welds.
Typical A-Frame glass rack specifications
| Specification | Typical Range / Option |
|---|---|
| Configuration | Double-sided, triangular A-frame |
| Load capacity | 2,000–8,000 lb (1–4 tons), custom engineered |
| Capacity | ~2× the glass of an L-Buck per footprint |
| Frame | Heavy-gauge steel, full seam welded (not stitch welded) |
| Dunnage | Soft rubber, HDPE, UHMW, urethane on all contact surfaces |
| Mobility | Stationary, forklift accessible, casters, overhead crane / lifting sling, AGV systems |
| Glass types | Float, flat, tempered, laminated, Low-E, IGU; jumbo sizes |
| Finish | Paint or powder coat, any color; custom stenciling |
Double-sided loading:
The triangular structure provides usable space on both sides, letting you store or transport about twice the glass of an L-Buck with the same footprint.
Improved visibility:
Open on both sides, an A-Frame lets you see every sheet stored within — useful for inventory and for selecting specific sheets.
Crane and sling handling:
Because a loaded A-Frame is balanced, it stays steady when lifted by overhead crane or sling, which is valuable when moving giant sheets across a plant. A-Frames are also commonly integrated into AGV and automated storage systems.
Double-sided loading:
A-frames provide a triangular structure with usable space on both sides. This allows you to store or transport twice the amount of glass compared to an L-buck with the same footprint.
Improved visibility:
Since A-frames are open on both sides, you can easily see all the glass sheets stored within the rack. This can be helpful for inventory purposes and selecting specific sheets.
As with all of the racks we manufacture, our focus is on repeatable quality. It begins by meeting with you to discuss the design, application, and work environment. We can build to your prints, or we can have our designers create a complete set of prints and specs based on your requirements. We also review all prints prior to production to validate performance and ways to reduce time and costs without compromising the strength or quality of the rack.
Once approved, we source all the materials for your project, including the steel and dunnage, through one of our long term supply chain partners. We fabricate your unit with several fabrication methods. Because these racks need to be able to handle heavy weight capacities, we only use full seam welding joints, not stitched welded joints for durability and safety.
Our quality assurance program monitors and inspects our products through every manufacturing stage to check for any issues. Finally, our units are either painted or powder coated in your choice of color and can even stencil your name, department or id on every rack.
Weight capacity:
This is crucial. A-frames have a weight limit and overloading them can be dangerous and damage the glass or the rack itself. (SEE OUR CASE STUDY BELOW) Choose a rack with a capacity that exceeds the weight of the heaviest glass sheets you plan to store or transport.
Glass size:
A-frame racks come in the size you require. We review your 3D CAD prints to ensure the rack you select has enough height and depth to accommodate your glass sheets comfortably. There should be enough space for the glass to rest on the supports without overhanging.
Material and construction:
Our A-frames are made of steel not aluminum. Steel is more durable and heavier, while aluminum construction is lighter but may not be suitable for very heavy glass. Consider the trade-off between weight and sturdiness based on your needs. Look for a rack with a strong and stable construction, with full seam welds not stitch welds for maximum strength
Dunnage & Padding:
Proper padding is essential to protect the glass from scratches and damage during storage and transport. We offer A-frames with padding on all the surfaces that the glass will come in contact with. Material options include Soft Rubber pads, HDPE & UHMW, and Urethane pads.
Mobility:
If you plan on moving the rack around frequently, consider getting one with wheels. NSMC will help you select the right wheels that are large enough to handle the weight of the loaded rack and have locking mechanisms to prevent unwanted movement.
While cost is always a factor, prioritizing durability, safety, and efficiency will ultimately lead to reduced downtime, improved productivity, and a safer work environment, justifying the initial investment.
A large glass manufacturer approached NSMC after a serious accident: a glass transport rack fell apart, causing two fatalities. We helped evaluate all of their racks. The cause was traced to the welding method — the failed rack had broken at its weld seams. Investigation showed it had been built with a stitch-welded process rather than a seam-welded process. Three vendors had stitch welded their racks to reduce cost; only NSMC used a complete seam-welding process on every rack supplied.
What is an A-Frame glass rack?
An A-Frame glass rack is a steel rack with two upright beams welded to a top crossbar, forming a triangular "A" that loads flat glass on both sides. The double-sided design stores roughly twice the glass of an L-Buck in the same footprint and lets operators see sheets from either side.
How much weight can an A-Frame glass rack hold?
A-Frames are custom engineered, commonly rated for 2,000 to 8,000 pounds (1 to 4 tons) per rack, with heavy-duty designs handling more. Capacity depends on steel gauge, base reinforcement, and weld quality. NSMC sizes each rack so its rated capacity safely exceeds the heaviest glass it will carry.
What is the advantage of an A-Frame over an L-Buck rack?
An A-Frame loads both sides, storing about twice the glass of an L-Buck with the same footprint, and its open sides give full visibility of stored sheets. A-Frames suit high-volume staging and crane or sling handling.
Should a glass rack be steel or aluminum?
Steel is more durable and better for heavy glass; aluminum is lighter but may not suit very heavy loads. NSMC builds A-Frames from steel with full seam welds for maximum strength and stability.
How do you protect glass on an A-Frame rack?
Proper dunnage protects glass from scratches and chips. We pad every contact surface with soft rubber, HDPE, UHMW, or urethane; steel-backed rubber profiles are mechanically fastened so a heavy glass edge cannot slice them off.
