The RZR Rack distributed by NSMC represents an advanced evolution in industrial material handling, transforming traditional static packaging into an automated, high-density dunnage rack asset. Engineered specifically as an adjustable bag rack and automotive bag rack system, this platform mechanically expands vertically to optimize warehouse layouts, protect sensitive components, and seamlessly integrate into automated factory workflows.
Traditional static storage configurations frequently introduce inefficiencies, underutilize vertical factory air space, and drive up transportation costs. The RZR automated framework reclaims these losses through dynamic vertical actuation.
Facilities implementing the RZR dynamic dunnage infrastructure realize measurable efficiency gains across their logistics chain:

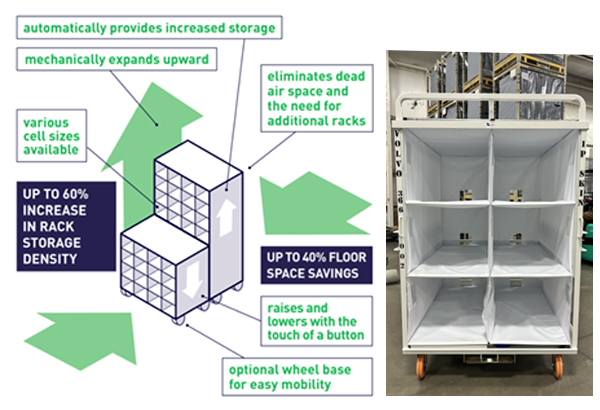

• Floor Space Savings: Reclaims up to 40% of plant floor space, completely eliminating dead air space and dropping the requirement for supplementary storage frames.

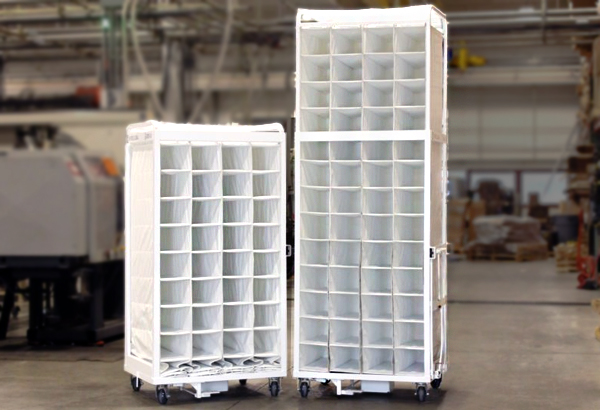

• Storage Density Acceleration: Provides up to a 60% increase in rack storage density by expanding vertically to maximize capacity.
• Space-Constrained Optimization: Serves as an ideal material handling solution for lean, high-density manufacturing environments.
• Workplace Productivity: Boosts overall plant efficiency and productivity by dramatically reducing material handling time.
• Line-Side Logistics Velocity: Delivers more parts directly to the line, cutting down warehouse-to-assembly transit cycles.
• Freight and Shipping Optimization: Fully cubes out standard box trucks or semi-trailers at maximum height.
• Logistics Cost Reductions: Leads to a direct, measurable reduction in ongoing freight and component transportation costs.
• Domestic Craftsmanship: Built in the USA using high-strength, durable components engineered for heavy industrial lifecycles.
• Zero Routine Maintenance: Constructed as a maintenance-free mechanical framework to lower operational overhead.
• Industrial Assurance: Backed by a definitive manufacturer warranty on materials and specialized craftsmanship.
For a granular breakdown of cell sizing metrics, geometric fabric partition patterns, and pouch deployment configurations, explore our comprehensive technical guide.
At the core of the RZR automotive bag rack is an electromechanical lift platform that raises and lowers effortlessly with the touch of a button. Powered by a robust 24V DC motor architecture, the system provides high self-locking force to guarantee stability under full payload constraints.
These racks are not only great for your warehouse but can also be used in box trucks, increasing its efficiency and practicality.
These revolutionary bags racks offer so much more than just additional storage space. We have compiled a list below for your consideration.
The mechanical lifting assembly adheres to strict industrial engineering baselines:
| Performance Attribute | Metric Specification | Imperial Equivalent |
|---|---|---|
| System Voltage Input | 24 V DC | 24 V DC |
| Max Load Capacity - Push | 6,000 N | 1,348 lbs. |
| Max Load Capacity - Pull | 4,000 N | 899 lbs. |
| Max Rated Travel Speed | 23.4 mm/s (at 1,000 N load) | 0.921 in/s (at 224 lbs load) |
| Mechanical Stroke Length | 635 mm | 25 in |
| Operational Temperature Bounds | +5°C to +45°C | +41°F to +113°F |
| System Compliance Standouts | EMC and RoHS compliant | EMC and RoHS compliant |
To support diverse automotive component weights, the actuator assembly (operating at 3400 RPM with a 10% duty cycle) can be calibrated to distinct load codes:
Code L (Maximum Load Capacity): Rated for a 6,000 N push and 4,000 N pull; operates at a typical current of 4.2 A under load with a full-load velocity of 4.1 mm/s.
Code N (Intermediate Balance): Rated for a 2,500 N push and 2,500 N pull; operates at a typical current of 4.1 A under load with an accelerated full-load velocity of 11.1 mm/s.
Code P (High-Speed Extraction): Rated for a 1,000 N push and 1,000 N pull; draws a typical current of 3.0 A under load to achieve a rapid full-load velocity of 23.4 mm/s.
Code T (Heavy-Duty Intermediate): Rated for a 5,000 N push and 4,000 N pull; draws a typical current of 4.2 A under load with a full-load velocity of 5.4 mm/s.
To analyze how electromechanical lift towers outperform legacy compressed-air systems on the factory floor, view our deep-dive analysis:
Industrial Actuation: Electromechanical vs. Pneumatic Lift Racks
The RZR platform adapts to your plant's specific material flow requirements through an array of specialized, modular components:

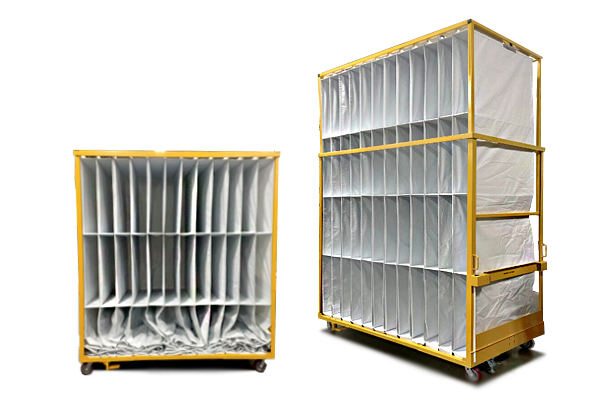

• Tailored Cell Size Configurations: Furnished in various cell sizes to match the profile of diverse parts, preventing component-on-component impact.
• Integrated Tow Bars: Allows plant operators to pull the dynamic rack efficiently, either as an individual material asset or chained together in a longer tow train.
• Heavy-Duty Hitches: Enables multiple racks to hook together into a transport train, facilitating fast transit via a standard fork truck, industrial tugger, or Automated Guided Vehicle (AGV).
• Directional Locking Foot Pedals: Secures the heavy-duty casters so that the racks track strictly front to back when in transit between stations. When depressed, the pedal temporarily allows full 360-degree rotation or side-to-side positioning within tight assembly cells.
• Clear Vinyl Curtains: Seals off the internal dunnage compartments to prevent dust, grease, and ambient factory contamination from reaching parts. Curtains are available in standard industrial vinyl as well as specialized ESD-safe materials.
• External Control Units: Features a stationary line-side power unit that connects to an external 120-volt power supply. Built with a dual-hand safety actuation control interface (requiring one dedicated unit per assembly station).
• Control Carrying Cases: Provides mobile power capabilities via a compact case that fits over an operator's shoulder or mounts directly to their tool belt. Requires a portable 24V battery connection (one unit required per station).
• Built-In 24V Battery Units: Adds a removable and rechargeable 24-volt lithium-ion battery system directly into the rack frame. Includes a heavy-duty protective housing and an integrated directional toggle switch.
• Industrial Rocker Switches: Utilizes a rugged 30A 12VDC two-directional rocker switch measuring 2" x 1" that mounts directly to the rack frame or external power enclosures.
• Kobalt Lithium-Ion Power Packs: Employs high-performance Kobalt 24-volt max Li-ion batteries equipped with built-in power indicators and internal circuitry to protect against over-charge, over-discharge, and extreme temperatures. Racks utilize 2.0 Ah battery packs for integrated setups and 4.0 Ah variants for external carrying cases, recharging in 30 minutes and 1 hour respectively.
Industrial assembly environments require stringent adherence to material safety standards and physical hazard mitigation protocols. The RZR structural system integrates specialized textile engineering and strict operational guidelines to protect both your workforce and your inventory.
Specialized Fabric Standards
• Class A Friendly Fabrication: Constructed using specialized, non-abrasive textile contact surfaces to prevent micro-scratching, scuffing, or marring on painted components.
• Electrostatic Discharge (ESD) Shielding: Available with full ESD-friendly materials to bleed off static electricity, protecting sensitive embedded microelectronics and electrical assemblies.
• Fire-Retardant Solutions: Available with specialized fire-retardant materials in multiple colors to fulfill strict plant safety regulations and simplify visual sequencing. Crucial Safety Safeguards & Operational Constraints
• Tip-Over Hazard Warnings: To prevent serious workplace injury, operators must load the racks evenly and use them strictly on hard, level surfaces. Racks must never be transported or towed while extended to full storage height or driven at excessive speeds.
• Pinch Point Mitigation: The automated electromechanical actuators deliver up to 6,000 N of vertical mechanical force. Operators must keep hands and limbs completely clear of all moving frame components while the system is actively extending or retracting.
• Intellectual Property Baseline: Manufactured in accordance with rigorous global standards and protected under U.S. Patent Registration Numbers 9,738,447 and 10,081,490.
To learn more about eliminating component defects, managing static build-up, and implementing clean-room vinyl shielding, check out our guide:
Class A Surface Protection & ESD Safe Manufacturing
Every custom industrial bag rack and dunnage system undergoes a rigorous engineering and quality assurance pipeline before arriving at your facility:
1. Final Design Drawing Sign-Off: Following receipt of a formal purchase order, NSMC and engineering generate a comprehensive blueprint drawing detailing all custom dimensions, fabric selection, and purchased accessories. Written approval must be granted prior to production.
2. Physical Prototype Validation: In specialized applications where custom prototypes are constructed, complete physical inspection and written sign-off of the prototype unit serves as the official baseline for full mass production.
3. Rigorous Pre-Shipment Testing: Prior to leaving the manufacturing plant, all completed racks go through compliance verification testing against the original procurement specifications. This testing data is logged and remains fully accessible to the customer upon request.
4. Lean Quality Control Culture: Rooted in continuous improvement and standard defect-tracking methods since 1991, incoming materials through final sub-assemblies undergo rigorous inspection to eliminate waste, ensure zero-defect distribution, and exceed industrial expectations.
The industrial durability of the RZR platform is backed by a structured manufacturer warranty program:
• Electronic Linear Actuators: Covered by a comprehensive 5-year limited warranty from the date of shipment to the manufacturer from the component supplier.
• Structural Racks & Fabric Bags: Backed by a 1-year limited warranty from the date of initial shipment, protecting against manufacturing and material defects. Note: The rack warranty does not cover rust or operational abuse, and the fabric bag warranty does not cover punctures or operational abuse.
• Assembly Labor: Includes a 1-year operational labor warranty from the date of shipment, with standard repairs performed during normal business hours (Monday through Friday, 8:00 AM to 5:00 PM).
• Kobalt Lithium-Ion Batteries: Supported by a 3-year limited manufacturer warranty ensuring freedom from defects in material and workmanship under normal industrial usage parameters.
